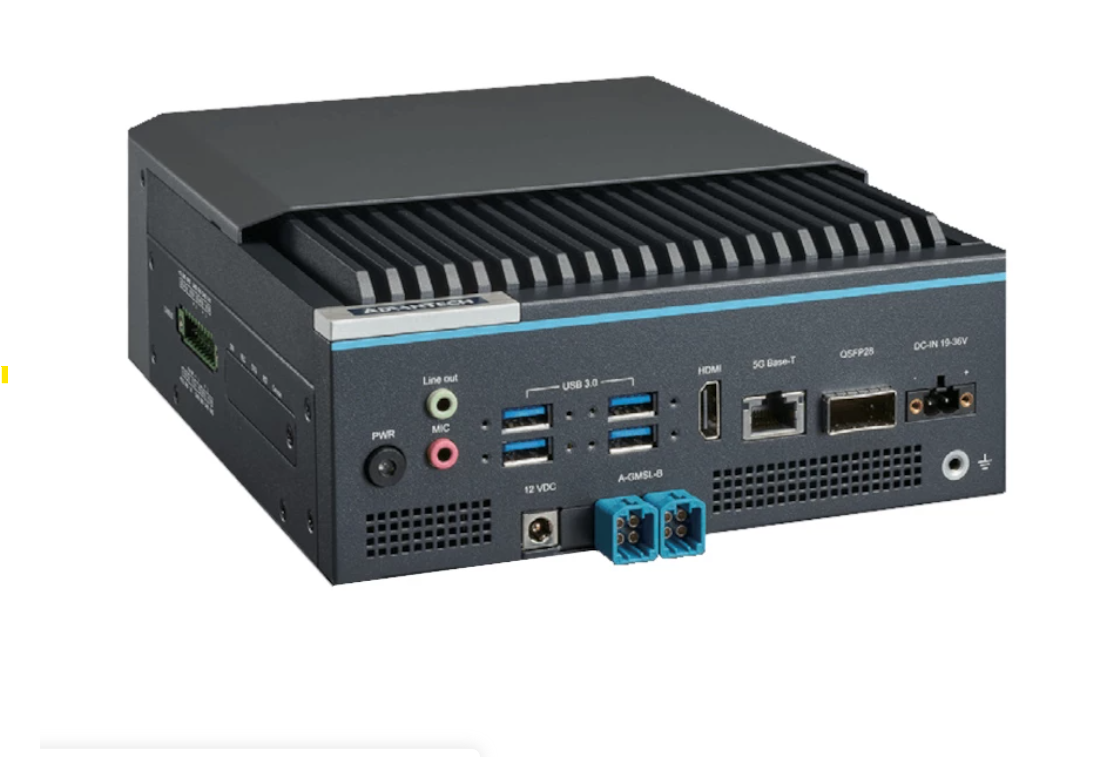

The SIB-742 Jetson Thor AI interface system is accelerated by the NVIDIA Jetson Thor module, and the Advantech MIC-742-AT delivers up to 2,070 FP4 TFLOPS AI performance with 128GB high-bandwidth LPDDR5X memory.
| Part number | SIB-742AT |
|---|---|
| Manufacturer part number | MIC-742-AT |
| Price | Call |
| ATTRIBUTES | |
| Size | 8.54 x 3.0 x 7.26 in (217 x 76.4 x 184.5 mm) |
| CPU | NVIDIA Jetson Thor™ T5000 |
| Number of Cores | 14 ARM Cores, 2560 GPU cores, 96 5th gen Tensor Cores |
| Speed | 2.6 GHz |
| Memory | 128GB LPDDR5X RAM onboard |
| Storage Flash | NVMe 2280 M.2 Card |
| Storage | 1x M.2 2280 M-Key, |
| Serial | 1x CAN |
| USB3.0 | 4x USB3.2 Gen2 |
| USB2.0 | N/A |
| USB OTG | 1x Micro-USB OTG (internal) |
| Ethernet | 1x 10/100/1000/2500/5000 Mbps Ethernet RJ45 |
| POE Ethernet | N/A |
| Expansion | 1x M.2 E-Key 3052 and 1x M.2 E-Key 2230 |
| GPIO | N/A |
| Audio | 1x audio speaker out, MIC in on board |
| Video | 1x HDMI |
| Camera | 8-ch GMSL2.0 with mini FAKRA connectors |
| Power supply | 19 to 36 Vdc |
| Power connection | 2-Terminal |
| Operating Temperature | -10°C to 60°C (-4°F to 140°F) |
| PROCESSOR TYPE | NVIDIA® Jetson T5000™ / Jetson T4000™ |
|---|---|
| PROCESSOR CLOCK SPEED | up to 2.6 GHz |
| RAM | up to 128GB LPDDR5X |
| STORAGE | SATA, 1x 2280 M-key NVMe |
| VIDEO OUT | HDMI / DP / DP++ |
| AUDIO | Audio Line-out x 1, Mic-in x 1 |
| ETHERNET | 1x 10/100/1000/2500/5000 Mbps |
| SERIAL PORTS | N/A |
| USB 3.0 | 4x USB 3.2 Gen 2 |
| USB 2.0 | 1x USB OTG (Internal Micro USB) |
| CAN | 4x CAN FD |
| I2C | 1x I2C hardware Port |
| SPI | N/A |
| GPIO | NA |
| TIMERS/ COUNTERS/ PWM | N/A |
| BUS EXPANSION | M.2 2230 E Key, M.2 3052 B key (5G) |
| SIZE | 8.54 x 3.0 x 7.26 in (217 x 76.4 x 184.5 mm) |
| LOW OPERATING TEMPERATURE | -10°C (14°F) |
| HIGH OPERATING TEMPERATURE | 60°C (140°F) |
| UPPER OPERATING HUMIDITY | 95 |
| VOLTAGE | 19 to 36V |
| POWER TYPE | Power Supply Optional, 2 Terminal |
The SIB-742 Jetson Thor AI interface system is accelerated by the NVIDIA Jetson Thor module, and the Advantech MIC-742-AT delivers up to 2,070 FP4 TFLOPS AI performance with 128GB high-bandwidth LPDDR5X memory. Designed for industrial-grade reliability, it offers a total system power consumption of just 150W, a wide operating temperature range of -10°C to 60°C, and a compact form factor for space-constrained deployments.
Designed and built for a VSS AI NVR solution offering Video search and summarization for industrial safety, Intelligent transportation, Autonomous vehicle monitor and control, the SIB-742 is a go-to solution. Able to work in -20°C to 60°C(-4°F to 140°F) environments with air movement. While offering 8 channels of GMSL2.0 video inputs for direct Camera connection, and up to 4x 25GbE network ports for high-speed network communication.
_____________________________________________________
EMAC can provide software Board Support Packages (BSPs) for our Embedded servers(SIB) or Single Board Computers (SBCs) using your choice of compatible Embedded Operating Systems. Integration of the single board computer into an enclosure, adding memory, CPU, Wireless (WiFi, Bluetooth or Mesh), storage solution & loading an OS, in most cases is free with the purchase of the Single Board Computer and related components. Additionally, EMAC has LCD- Panel Kits with Touchscreen options, allowing our Single Board Computer Solutions to utilize an LCD for video output and a touchscreen replacement of a mouse for input.
The LCD Panel Kit with the Touchscreen option in conjunction with the Flash Disk, makes for a Solid State Embedded computer system that is ideal for rugged, wide temperature, and low downtime environments. If you cannot find exactly what you need from our large Off-The-Shelf selection, EMAC can potentially customize any hardware or software component, and additionally offer driver development and software application programming, providing you with the perfect fit for their SBC application needs. EMAC can provide Enclosures, I/O Modules, Peripherals, Memory, and Operating Systems for most of our x86 and ARM SBCs to make them into fully embedded systems.
EMAC supports and can install the following Embedded Operating Systems on Hard Drive or Flash Disk: Embedded Linux, Xenomi Development Framework, ROMDOS, Windows CE, and Windows Embedded Standard, Windows 10 IoT or Windows 10 IoT Core.
