Description

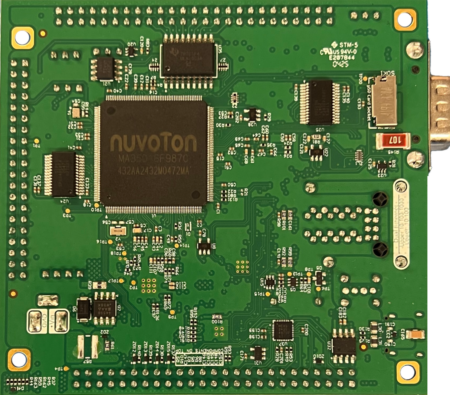

Preliminary – The iPac-35D1 is a high-end Edge IIoT Gateway ARM64 SBC “Single Board Computer”, Industrial temperature operation web-enabled SBC based on the NuvoTon NuMicro® MA35D1 with dual 64-bit Arm® Cortex®-A35 cores and one 180 MHz Arm® Cortex®-M4 core. Designed and manufactured in the USA by EMAC, Inc; this Microcontroller replacement SBC is an ideal IIoT Edge Gateway system. The iPAC-35D1 IIoT Gateway ARM64 SBC can run an embedded web server or MQTT and to send out the current monitored or logged data to the end-user monitor or cloud service. The iPAC-35D1 IIoT Gateway ARM64 SBC’s web connection is available via network connections, a 1000 BaseT Gigabit Ethernet and a 10/100 BaseT Ethernet ports are included or connecting an optional 802.11 wireless WiFi networking module. This NuvoTon NuMicro® MA35D1 System On Chip processor powered SBC has all I/O connections brought out to header connectors on the board while maintaining the footprint of a standard PC/104 module at 3.77″ x 3.54″. The iPAC-35D1 is perfectly suited for IIoT Edge Gateway or Embedded Data Acquisition and Control applications where an Industrial Temperature operating range system is needed. Designed for high-end edge IIoT gateway systems, the IPAC-35D1 SBC provides multiple advanced and high-speed connection interfaces, such as Gigabit Ethernet, SDIO, USB 2.0, and CAN-FD, for edge gateway, HMI and new energy applications.
EMAC, Inc.; a leader in compact low power single board computer design and manufacturing, has created the iPAC-35D1 based on NuvoTon MA35D1 ARM Cortex-A35 Dual-Core processor, with a Cortex-M4 core. Designed and Made in the USA this ARM64 industrial embedded single-board computer is ready for your embedded applications. It has an industrial temperature range of -40C to 85C and utilizes up to 64 GB of eMMC Flash, 16MB of Serial Data Flash (for boot), and up to 512 MB of DDR3 RAM(in CPU).
The iPAC-35D1 has one (1) RS232 serial port with handshake (RTS/CTS), two (2) RS232 serial ports (TX and RX only), one (1) RS232/422/485 serial port with RTS/CTS handshake, two Ethernet ports(1x 1000 Base-T and 1x 10/100 Base-T), 1x USB 2.0 Host port Type-A, and 1x USB 2.0 OTG port Type-C. The board has 8 channels of 12-bit A/D (0 to 2.5 volt) and an internal real-time clock/calendar with battery backup. It also includes 20 GPIO (3.3 V) lines on header, 8 high drive open collector dedicated digital output lines with configurable voltage tolerance, 16 GPIO IO Lines on the header connector, 2 PWM I/O lines, 2 or more counters, 2 or more programmable clock outputs. The iPAC-35D1 has a Synchronous Serial I/O line (I2S), 1 SPI line (4 SPI CS), I2C PORT, CAN-FD port, a micro SD socket, an external Reset Button provisions and red Power and Green status LEDs.
Designed for Target Applications:
- IIoT Edge Gateway
- Tiny AI (Artificial Intelligent) / ML (Machine Learning)
- Microcontroller upgrade or replacement
- HMI (Human Machine Interface) & Industrial Control
- New Energy Applications
The NuvoTon NuMicro® MA35D1 series processor is a trusted system for IoT products’ security requirements. It includes several advanced security mechanisms such as Nuvoton Trusted Secure Island (TSI) an isolated secure hardware unit, TrustZone, secure boot, tamper-detection, built-in cryptographic accelerators, and a TRNG, as well as Key Store and OTP memory. All the security operations are performed in the TSI to protect sensitive and high-value data. The features also satisfy customers in IEC 62443 certification requirements.
For HMI applications, the NuvoTon NuMicro® MA35D1 series processor provides a LCD display controller with a resolution up to 1920×1080 at 60 FPS, a 2D graphic engine, a JPEG and a H.264 decoder integrated for better graphical HMI effects and video playback. See the PPC-07-35D1 Open Frame PanelPC for a preconfigured HMI solution.
When more versatile or semi-custom applications are needed, EMAC has the same small 200-pin SODIMM form factor Systme-on-Module “SoM” module. The SoM-35D1F is the ideal processor engine for your next design. All of the ARM processor core functionality is included on this tiny board including Flash, Memory, Serial Ports, Ethernet, I2S Audio, PWMs, Timer/Counters, A/D, digital I/O lines, Clock/Calendar, and more; on a small interchangeable module. Making a system by using a carrier board, base board, or breakout board, such as the SOM-255G2 or a custom-designed carrier board for each specific project application.
_____________________________________________________
EMAC can provide software Board Support Packages (BSPs) for our Single Board Computers (SBCs) using your choice of compatible Embedded Operating Systems. Integration of the single board computer into an enclosure, adding memory, CPU, Wireless (WiFi, Bluetooth or Mesh), storage solution & loading an OS, in most cases is free with the purchase of the Single Board Computer and related components. Additionally, EMAC has LCD- Panel Kits with Touchscreen options, allowing our Single Board Computer Solutions to utilize an LCD for video output and a touchscreen replacement of a mouse for input.
The LCD Panel Kit with the Touchscreen option in conjunction with the Flash Disk, makes for a Solid State Embedded computer system that is ideal for rugged, wide temperature, and low downtime environments. If you cannot find exactly what you need from our large Off-The-Shelf selection, EMAC can potentially customize any hardware or software component, and additionally offer driver development and software application programming, providing you with the perfect fit for their SBC application needs. EMAC can provide Enclosures, I/O Modules, Peripherals, Memory, and Operating Systems for most of our x86 and ARM SBCs to make them into fully embedded systems.
EMAC supports and can install the following Embedded Operating Systems on Hard Drive or Flash Disk: Embedded Linux, Zyphyr, FreeRTOS, and Windows Embedded Standard, Windows 10 IoT or Windows 10 IoT Core depending on your hardware selection.
