Description
Preliminary – The PPC-07-35D1 MA35D1 ARM64 HMI is an MA35D1 ARM64 based Industrial PanelPC HMI solution. This Industrial HMI system is based on the NuvoTon NuMicro® MA35D1 with dual 64-bit Arm® Cortex®-A35 cores and one 180 MHz Arm® Cortex®-M4 core. Designed and manufactured in the USA by EMAC, Inc; The PanelPC comes ready to run with the Operating System installed on the onboard flash. Apply power and watch the Linux X Windows Qt User Interface appear on the vivid color LCD. Interact with the PPC-07-35D1 using the responsive integrated touchscreen or remotely over the network. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.
Use EMAC’s development tools to quickly develop and debug your HMI application, setup an M2M network, connect some IOT devices and/or configure the Digital inputs and outputs to provide and receive information to other devices. They have the ability to access and control the system both locally and anywhere in the world via the internet.

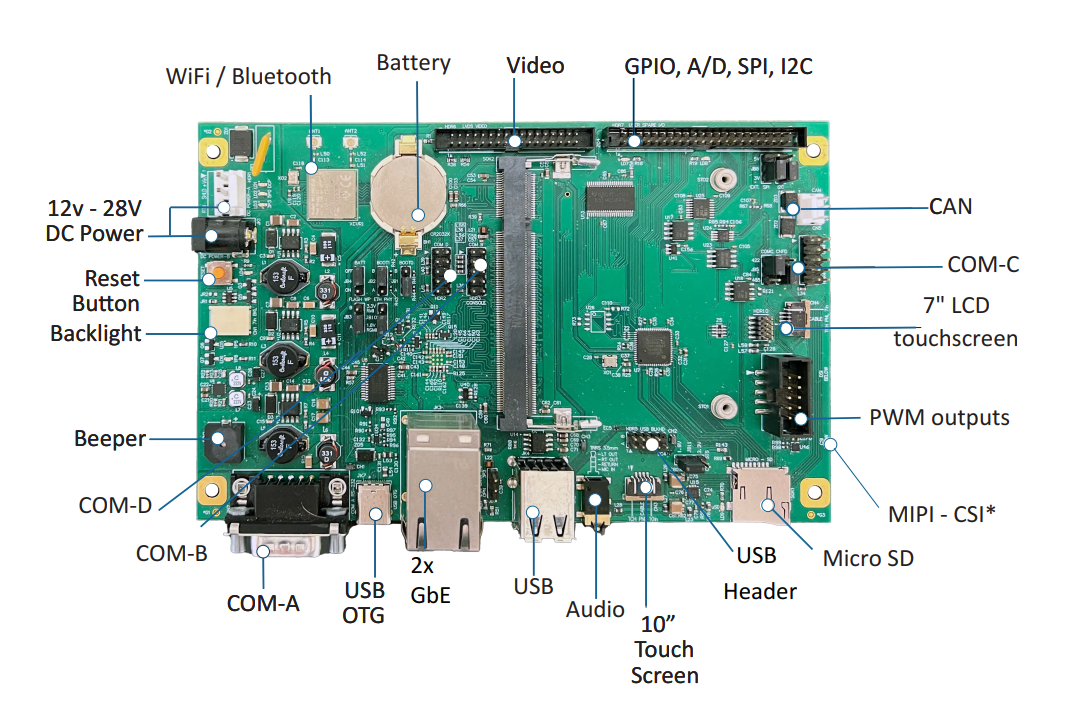

- NuvoTon MA35D1 Dual-Core 800MHz ARM 64-bit Cortex A35
- Additional 180Mhz Cortex M4 coprocessor
- 4GB of eMMC Flash & 512MB of DDR3 RAM
- 7″ (800 nits) WVGA LVDS LCD with Touchscreen
- 4x MIPI-CSI Lanes, 4x MIPI-DSI Lanes
- Dual Ethernet ports (1x 1GB & 1x 100 BaseT)
- 16x GPIO, 1x SPI, 1x I2C, 1x CAN-FD, 2xPWM
- 3x USB 2.0 Ports
- 4x Serial Ports (3x RS232/1x RS232/422/485)
- Wireless 802.11 a/b/g/n & Bluetooth 5.1; TI WL1807MOD Wireless
The NuvoTon MA35D1 CPU is ready to run as an edge gateway or perform Tiny AI (Artificial Intelligent) / ML (Machine Learning) tasks with minimal user input.
___________________________________________________________________________
EMAC is a global leader in industrial automation and HMI Panel PCs. We provide Panel PCs for embedded automation computers, automation controllers, remote i/o modules, and custom data acquisition solutions.
EMAC’s Panel PCs are available ready to run with the Operating System installed on flash disk or hard drive. Apply power and watch either the Windows or Linux User Interface appear on the vivid color LCD. Interact with the PPC using the responsive integrated touchscreen. Everything works out of the box, allowing you to concentrate on your application, rather than building and configuring device drivers. Just Write-It and Run-It.
Contact the EMAC Panel PC Sales Department for details on Sunlight Readable Panel PC, IP65 Panel PC, IP67 Panel PC, Wide Voltage Panel PC, and/or Low Power Consumption Panel PC specifications.
